Sale!

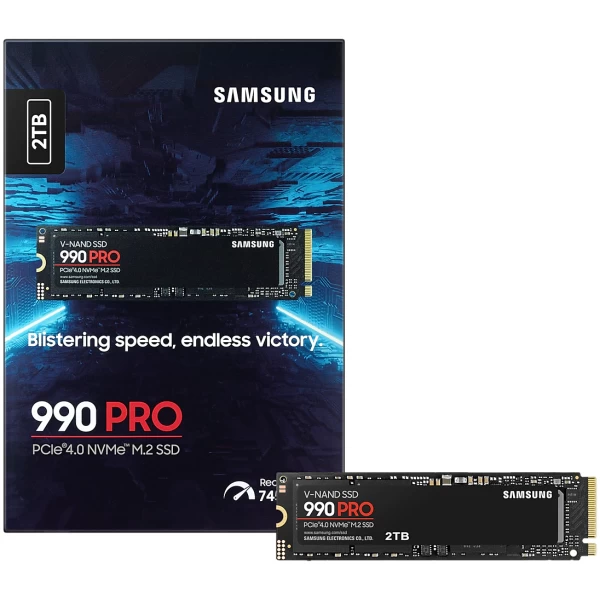

Samsung 990 PRO 2TB M.2 2280 NVMe PCIe 4.0 SSD

Original price was: $439.00.Current price is: $369.00.

Limited Stock Available Now
Ready to be Pick-up at our Store
Samsung 2TB SSD, 990 PRO, M.2 2280 NVMe PCIe 4.0, Read up to 7,450MB/s, Write up to 6,900MB/s, Random Read/Write 1,400K/1,550K IOPS, 1.5M Hours MTBF, 1,200TBW 5 Year/s Warranty
SKU: MZ-V9P2T0BW Categories: , ,

Blistering speed, endless victory

Experience long-lasting fast performance of PCIe® 4.0. The in-house controller’s smart heat control delivers supreme power efficiency while maintaining speed and performance to help keep you on the top of your game¹.

Samsung 990 PRO

¹PCIe 4.0’s best theoretical sequential read is 8000 MB/s – 990 PRO reaches 7,450 MB/s as of Q3, 2022.

PCIe 4.0 speed maximised

Huge speed boost. Up to 40% and 55% faster random read/write speeds than 980 PRO – up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0². Fly high in gaming, video and 3D editing, data analysis, and more.

PCIe 4.0

²Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center. Test system configuration: AMD Ryzen 7 5800X 8-Core Processor CPU @ 3.80GHz, DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS – Windows 10 Pro 64bit, Chipset – ASRock-X570 Taichi. To maximise the performance of the 990 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website. 4TB model to be released in 2023.

Incredible power efficiency

More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO³. This low-power design delivers outstanding PCIe® 4.0 performance possible with optimal power efficiency.

Incredible power efficiency

³980 PRO Sequential Read/Write – 1,129/877 MB/Watt, 990 PRO Sequential Read/Write – 1380/1319 MB/Watt based on internal test result of 1TB capacity model.

Smart thermal solution

Smart thermal solution

Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm helps to manage heat for stable performance.The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures stable.

The champion maker

An amazing gameplay experience. Huge improvement in random performance enables faster loads for gaming realism on PS5 and DirectStorage PC games⁴.

The champion maker

⁴DirectStorage technology from Microsoft loads games faster than before by leveraging the multiple GB/sec speed of modern NVMe SSDs. Results are based on an internal comparison test with Samsung 980 PRO.

Samsung Magician software

Harness the full power of 990 PRO. Samsung Magician software’s user-friendly suite of optimisation tools always gets you the best performance out of your Samsung SSD⁵. Protect data, get updates, monitor drive health, and set up LED color combinations. It’s your personal SSD toolkit.

⁵Magician software provides a toolkit to manage the 990 PRO for best performance. This toolkit supports Integrative Drive health checks, performance benchmarks and optimisations, and encrypted drive andfirmware updates.

Samsung Magician software
World's No. 1 Flash Memory Seller

World’s No. 1 Flash Memory

Experience superior performance and reliability you only get from the world’s No.1 flash memory seller since 2003*. All components and firmware are produced in-house, including Samsung’s world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

* Source: 2003~2021 OMDIA data – NAND suppliers’ revenue market share.

Specifications

Interface
PCIe Gen 4.0 x4, NVMe 2.0
Sequential Read
Up to 7,450 MB/s *

* Performance may vary based on system hardware & configuration

Sequential Write
Up to 6,900 MB/s *

* Performance may vary based on system hardware & configuration

Warranty
5-Year Limited Warrantyor 1200 TBW Limited Warranty
Application
Client PCs, Game Consoles
Weight
Max 9.0g Weight

General Feature

Application

Client PCs, Game Consoles

Rated Capacity

2,000GB (1GB=1 Billion byte by IDEMA)

* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe Gen 4.0 x4, NVMe 2.0

Dimension (WxHxD)

80 x 22 x 2.3 mm

Weight

Max 9.0g Weight

Storage Memory

Samsung V-NAND 3-bit MLC

Controller

Samsung In-house Controller

Cache Memory

Samsung 2GB Low Power DDR4 SDRAM

Special Feature

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes

Performance

Sequential Read

Up to 7,450 MB/s *

Sequential Write

Up to 6,900 MB/s *

Random Read (4KB, QD32)

Up to 1,400,000 IOPS *

Random Write (4KB, QD32)

Up to 1,550,000 IOPS *

Random Read (4KB, QD1)

Up to 22,000 IOPS *

Random Write (4KB, QD1)

Up to 80,000 IOPS *

* Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level)

Average: 5.5 W* Maximum: 8.5 W (Burst mode)*

Power Consumption (Idle)

Max. 55 mW *

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 – 70°C Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

* Actual power consumption may vary depending on system hardware & configuration

Software

Management SW

Magician Software for SSD management

Warranty

5-Year Limited Warranty or 1200 TBW Limited Warranty

This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer’s website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as “Model Number”) is the exact model item you will receive.
